6.5mm Cancellous cannulated screw

ISO 13485 | CDSCO | GEM Certified Orthopedic Implant Manufacturer

Large Fragment

6.5mm Cancellous cannulated screw | Orthopedic Trauma Implants

Clinical Indications in Orthopedic Trauma The 6.5mm  cancellous cannulated screw self-tapping is indicated for trauma reconstruction, osteosynthesis, and arthrodesis in large bone structures:

  • Femoral Neck Fractures: Intracapsular, transcervical, and basicervical femoral neck fractures managed via parallel inverted-triangle three-screw lag construct fixation.

  • Tibial Plateau Fractures: Schatzker Type I–VI fractures, delivering direct lag compression across split and depressed intra-articular lateral and medial condyle fragments.

  • Distal Femur Intra-Articular Trauma: Coronal shear (Hoffa) fractures and intercondylar split fractures of the distal femur.

  • Pelvic & Acetabular Fixation: Posterior column stabilization, anterior column screw fixation, and sacroiliac joint disruptions.

  • Ankle & Hindfoot Arthrodesis: Subtalar, tibiotalar, and triple joint arthrodesis procedures requiring high-torque axial compression.

  • Periprosthetic Fracture Augmentation: Adjunctive interfragmentary screw fixation around primary total knee or hip stems.

Product No. & Sizes

SizesReference Number
 TitaniumSS316L
20mm to 85mmBMTT10016/17.20 to 85BMTS10016/17.20 to 85
20mm to 85mmBMTT100121/22/23.20 to 85BMTS10021/22/23.20 to 85

Product Featured

Percutaneous Guide-Wire Insertion

The smooth internal longitudinal cannula allows accurate delivery over a 1.25 mm guide wire under fluoroscopic C-arm guidance, minimizing soft-tissue disruption, reducing surgical exposure, and safeguarding periosteal vascularity.

Deep Cancellous Thread Architecture

Engineered with an enlarged outer-to-core diameter ratio and aggressive thread pitch to maximize surface contact area and purchase in soft, porous, or osteopenic cancellous bone, significantly increasing pull-out strength.

Interfragmentary Lag Compression

The partially threaded configuration (with a smooth proximal shaft) creates controlled interfragmentary compression across fracture planes as the threads bite the distal fragment and the hemispherical head seats against the near cortex or washer.

Efficient Self-Tapping & Self-Drilling Flutes

Sharp distal reverse-cutting flutes clear dense bone debris during insertion, reducing driving torque, operative steps, and the risk of thermal osteonecrosis.

Low-Profile Head with Washer Compatibility

Hemispherical head profile countersinks neatly into bone margins; pairs with dedicated spherical washers to distribute compressive loads evenly across thin cortical bone envelopes and prevent head sinkage.

Anti-Cam-Out Drive Recess

Broached with a precision 3.5 mm or 5.0 mm cannulated hexagonal or StarDrive profile, ensuring dependable torque transmission without drive-recess stripping during deep seating.

Traceability

Permanent high-resolution laser marking denoting diameter, length, and manufacturing lot code on each individual piece.

Our Gallery

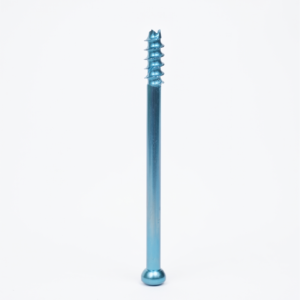

6.5mm Cancellous Cannulated screw Self tappering Biolink medical Technology
6.5mm Cancellous Cannulated screw Self tappering Biolink medical Technology
1 / 2
